Part No. AD-CH-001
Alloy Steel Bow and D Shackles, US Type, 2–80 t
High-strength alloy steel shackles to US-type dimensions, bow and D shapes, screw-pin and bolt-type, rated from 2 t to 80 t.
| Minimum order | 50 pcs |
|---|---|
| Availability | In stock |
| Price | Request quote |
| Brand | OEM |
| Category | Anchor & Docking › Chain & Shackles |
Request a quote Reply within 1–2 business days
Specifications
| Part No. | AD-CH-001 |
|---|---|
| Material | Alloy steel, high strength |
| Standard | US-type dimensions |
| Shapes | Bow (anchor) and D (chain) |
| Pin | Screw pin or bolt with nut |
| Sizes | 3/8 in – 2-1/2 in |
| Rated load | 2 t – 80 t |
Description

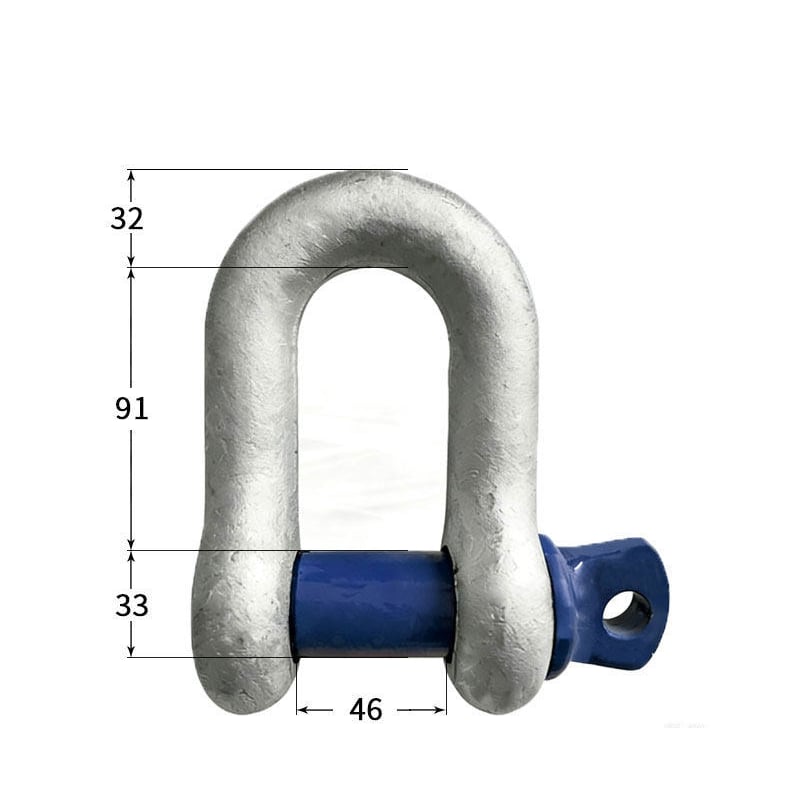

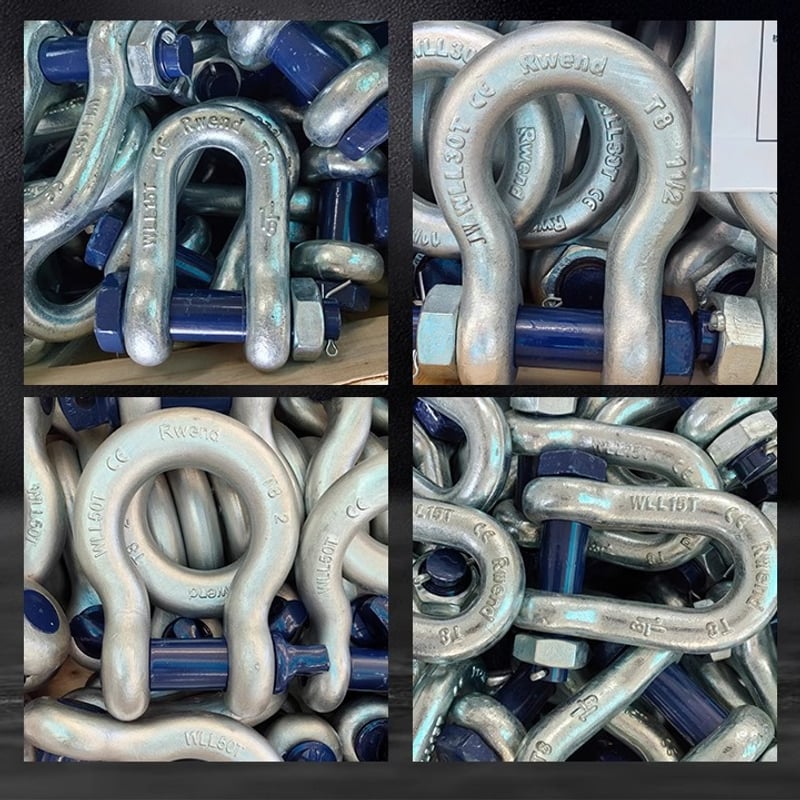

Forged alloy steel shackles made to US-type dimensions for lifting, rigging and heavy mooring connections. Bow (anchor) shackles come in screw-pin and bolt-type versions, sized from 3/8 in (2 t) to 2-1/2 in (80 t), with D (chain) shackles also available. Suited to anchor-to-chain joins, mooring tackle and deck rigging on workboats and commercial vessels.
Request a quote for this product
Tell us the quantity and destination port. We reply with price and lead time within one business day.
Other products in Chain & Shackles
| Part No. | Product | Type | Diameter | Sold by | Uses | Availability | MOQ | ||
|---|---|---|---|---|---|---|---|---|---|

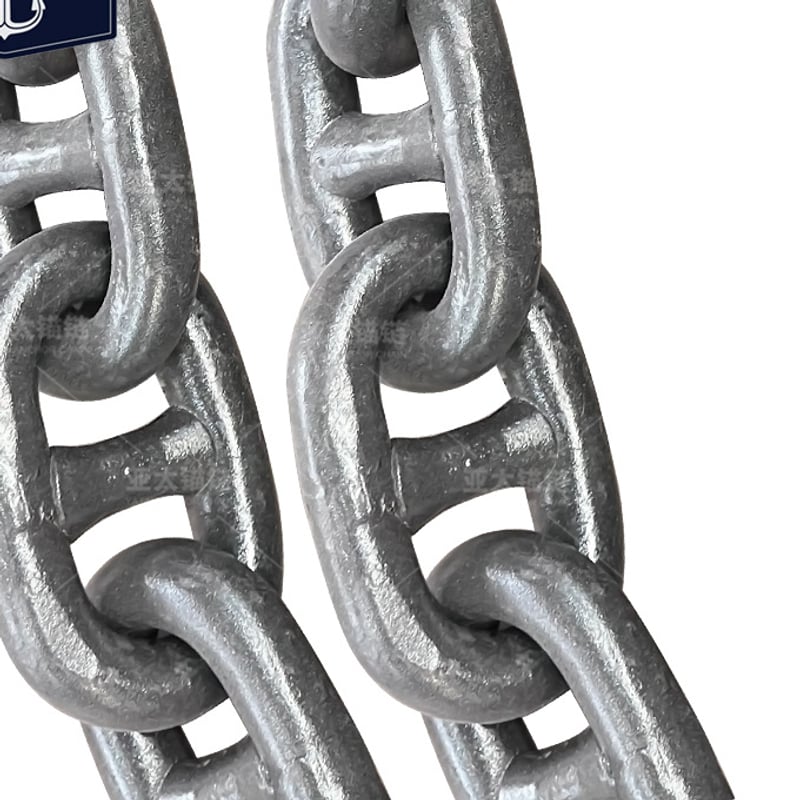

 | AD-CH-002 | Stud Link Anchor Chain, 30 mm, GB/T 549AD-CH-002 · MOQ On request | Stud link anchor chain | 30 mm | Weight | Made to order | On request | Quote | |

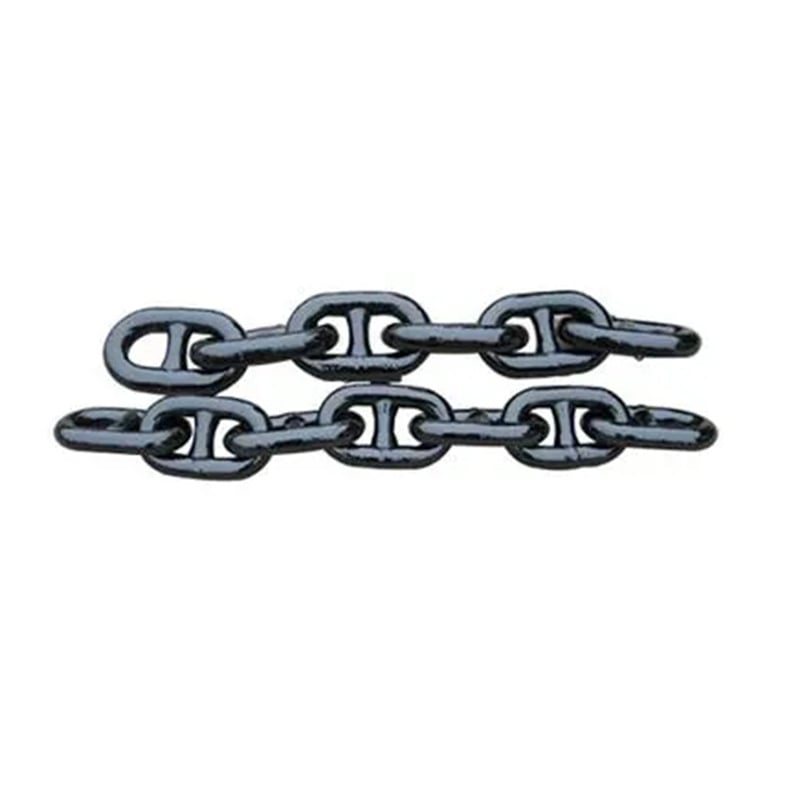

 | AD-CH-004 | Marine Anchor Chain, Stud Link or Studless, Grade 1AD-CH-004 · MOQ On request | Stud link or studless | Anchoring, mooring, lashing | Made to order | On request | Quote | ||

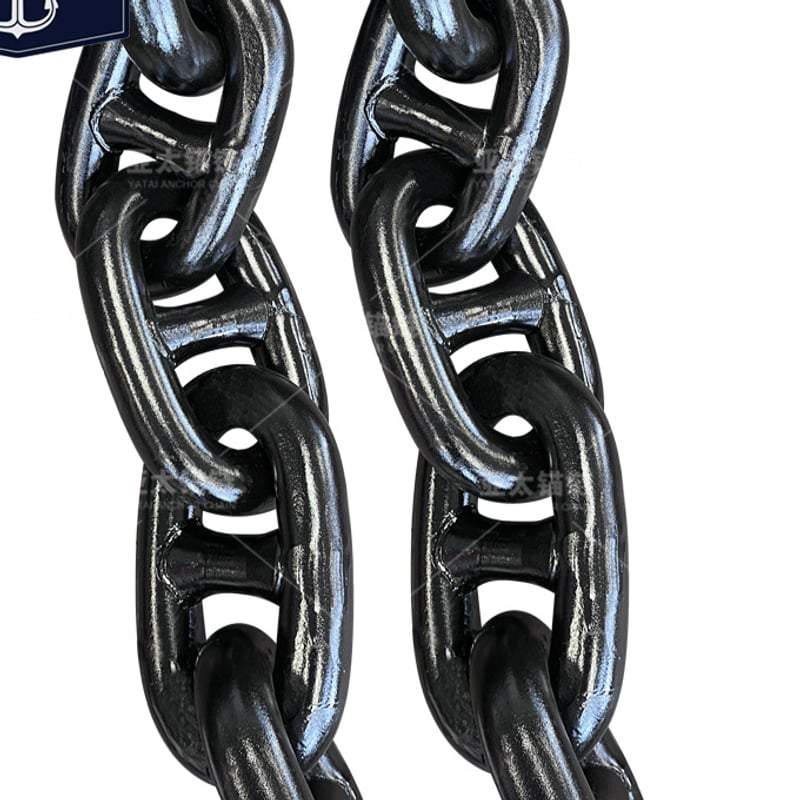

 | AD-CH-005 | Stud Link Mooring Chain, 54 mm, High StrengthAD-CH-005 · MOQ On request | Stud link mooring chain | 54 mm | Weight | Offshore mooring, large-vessel anchoring | Made to order | On request | Quote |
